7'' Quadcopter Project

With my joining of multiple design teams in my first year studying engineering at the University of Toronto, I had the chance to interact with many design pipelines and best practices for realizing a project from inception. Thus, during my first year's winter break, I commenced my own design project - a 7'' quadcopter remote-controlled drone. Ensuring that I had the full experience of a project, I experienced all aspects of the design process, including brainstorming, iterated candidate designs, design process documentation, CAD/digital modelling, manufacturing, prototyping, and a mind-breaking amount of troubleshooting both electronics and firmware.

As the fourth major remodel, the current iteration of the drone combines many attributes of previous drones, building upon the v4's inline battery visual, but improving on its balance by accurately predicting CoG balance. Additionally, with the addition of a video transmission system, the drone can formally be named an FPV craft.

December 2025 - Present

Key Skills: Full design cycle experience, Electrical handiwork, Firmware editing and flashing, Telemetry data analysis, 3D print Manufacturing, Frequency Filter Application

Quadcopter v5 (Shephard)

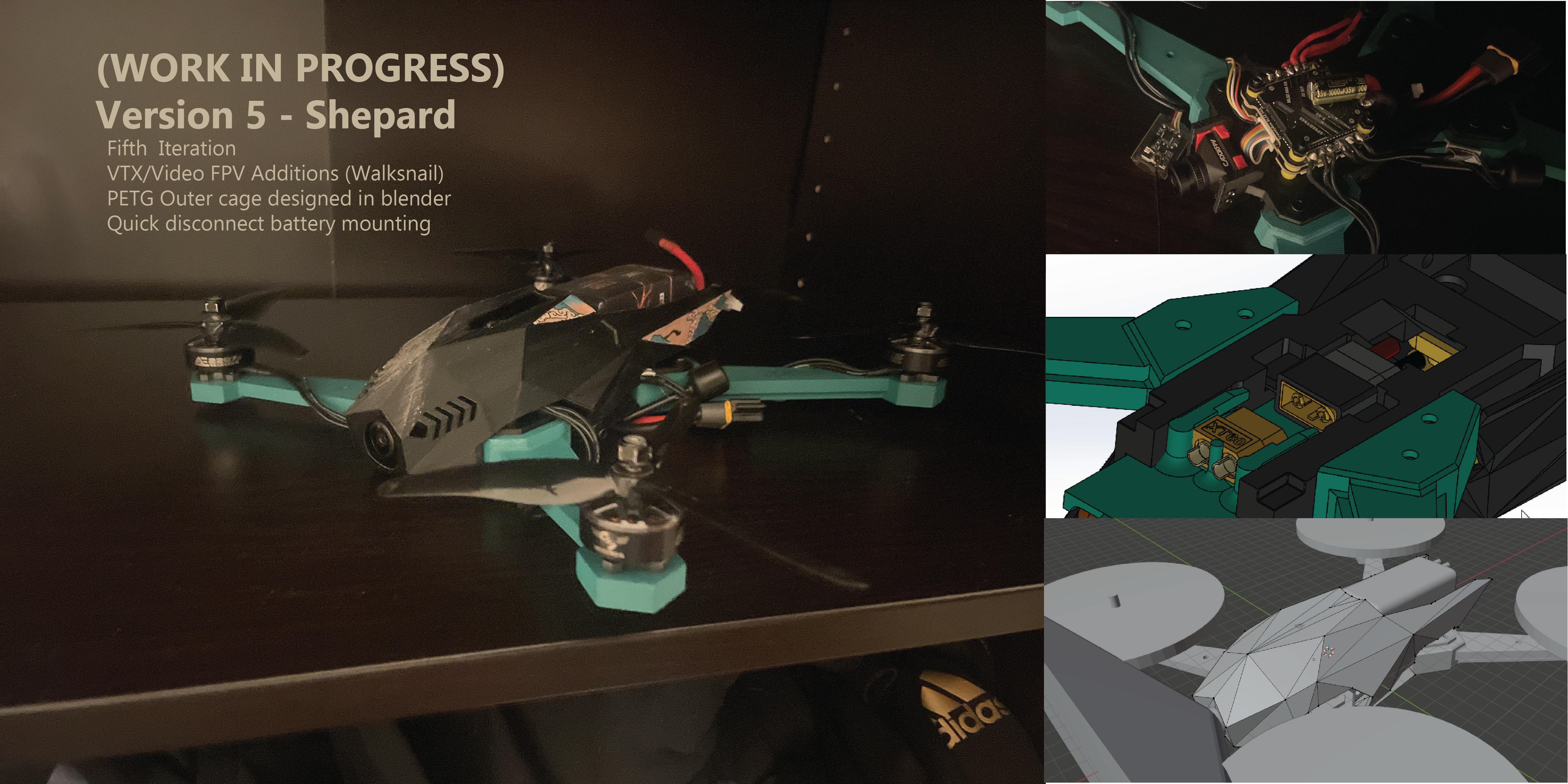

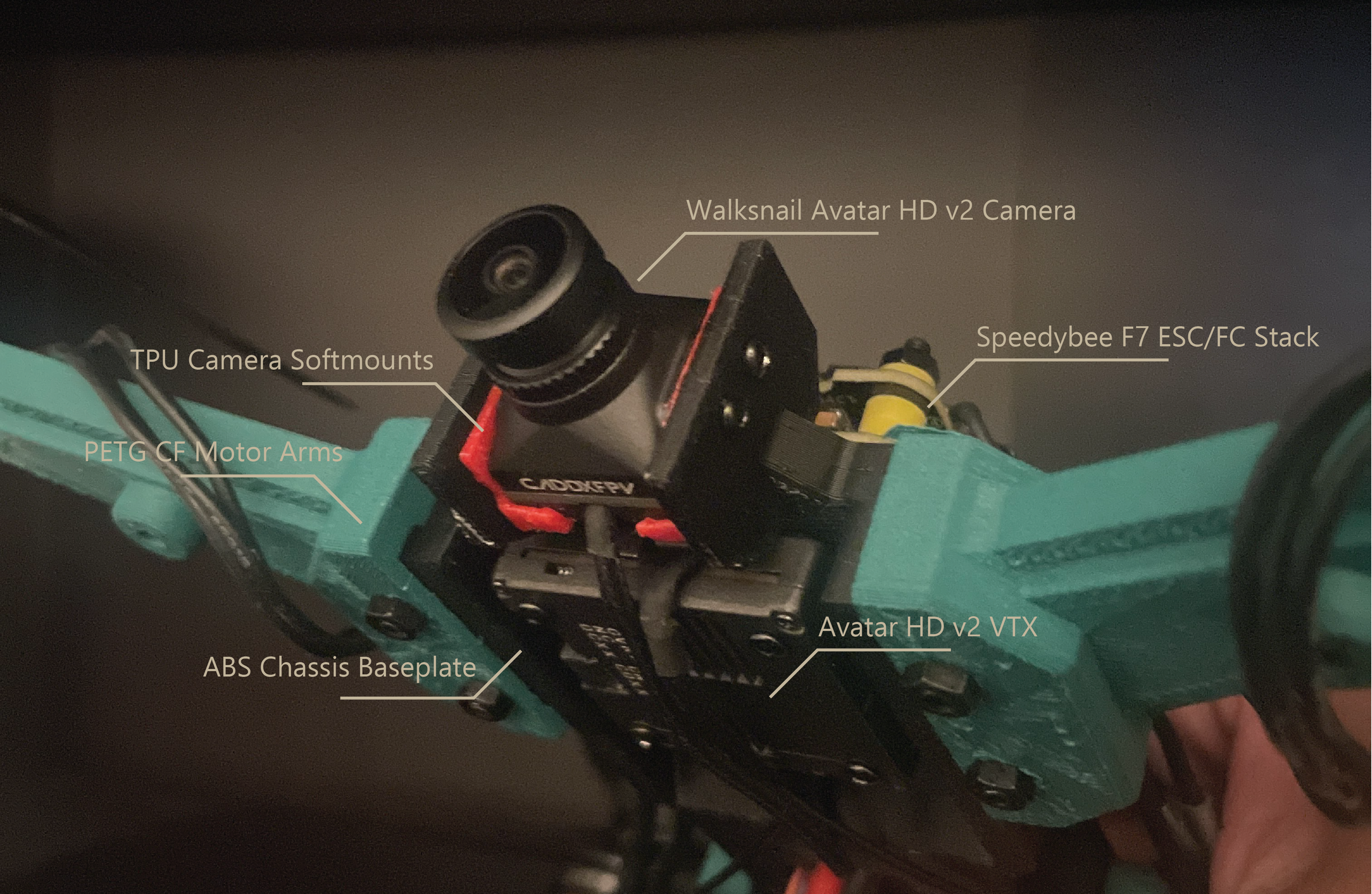

The fifth major iteration of my quadcopter, v5 aims to combine aspects of all the previous design experience, and the addition of a VTX/camera system, to create a robust and functional hybrid FPV/cinematic drone. In addition to the implementation of VTX system, radio transmission was switched to ELRS (Foxeer + Radiomaster) from the more limiting AFHDS (Flysky), allowing also more auxillary channels. The inline battery design was also polished for assembly and compliance.

As of current revision of my portfolio, this quadcopter iteration is being built. Design has almost concluded (issues with the Blender application for the shell).

The designation, Shepard, comes from the cyclops Polyphemus (Homer's "The Odyssey"), which was recently reintroduced into the public eye due to The Odyssey film by Christopher Nolan, released around when I started designing this iteration.

CAD using Solidworks to model quadcopter frames and hardware (McMaster-Carr) for 3D printing and ensuring compatability with purchased components including LiPo battery, flight controller/motor ESC stack, and motors

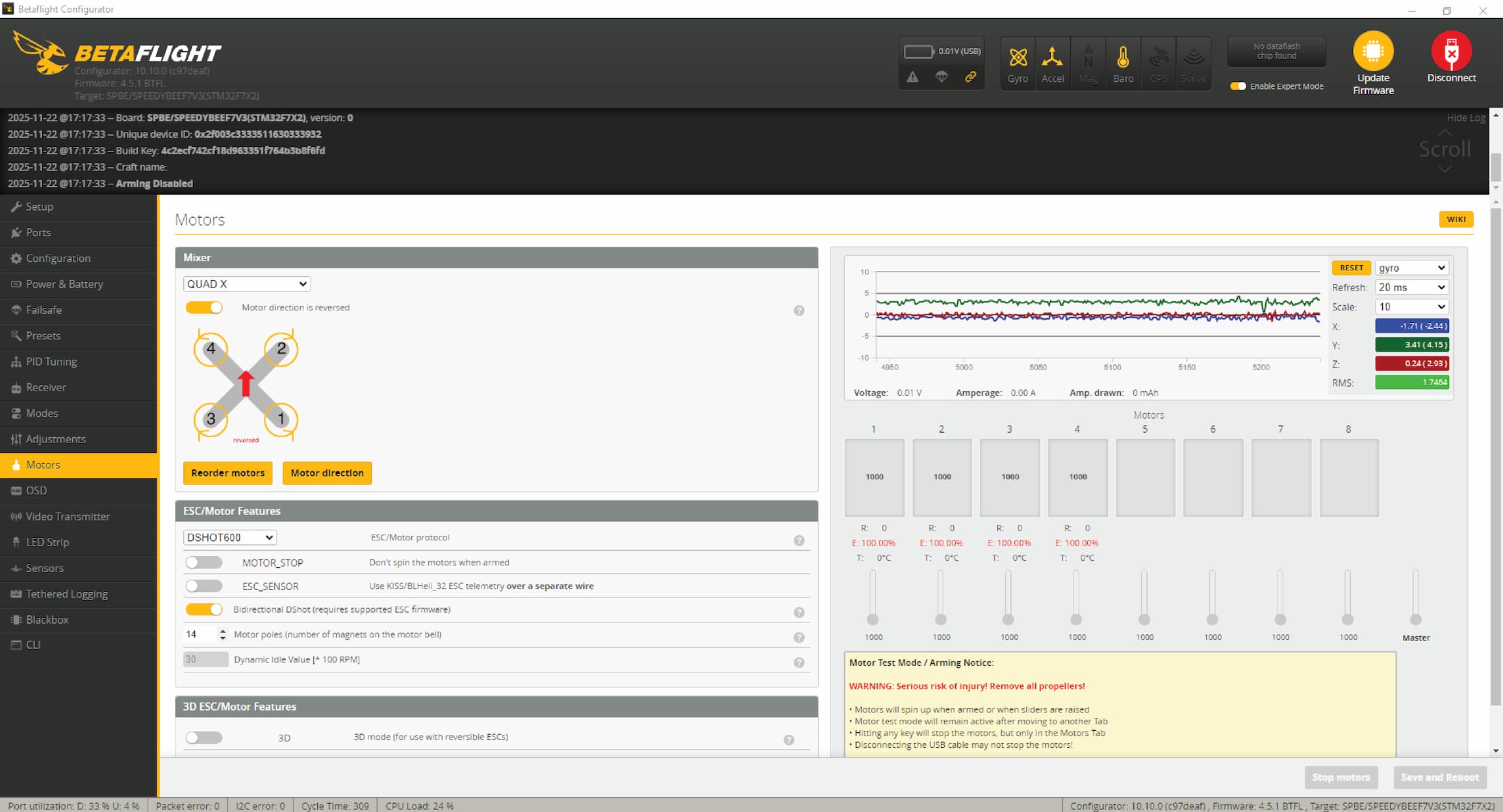

Firmware configuration and testing using Betaflight UAV firmware configurator to ensure proper signal channel alignment from radio transmitter to receiver to motor operations
Applied D-type low bypass sweep and D-notch type frequency filters to remove frame vibration noise from gryoscope telemetry and accurately read gyroscope/accelerometer measurements
Telemetry data analysis with SpeedyBee Flight Controller's blackbox implement to detect and take steps to correct vibration noise issues, motor RPM sensitivity/PID settings, and faulty soldering through inconsistent motor power draw
Radio receiver (FS-iA6B, Radiomaster T8L) and transmitter (FS-i6 2A, Foxeer ELRS 2.4G LNA) to allow for remote controlled arming, flight, and landing the RC quadcopter
3D print settings slicing and tuning for materials including ABS, PETG/PETG-CF, and TPU 95A
Basic FEA using Ansys to generally evaluate load cases for drone chassis and arms

The currently operating design, this iteration is more aimed towards optimizing landing and takeoff smoothness, as well as modularlity of the drone to allow for more flexible redesigning.

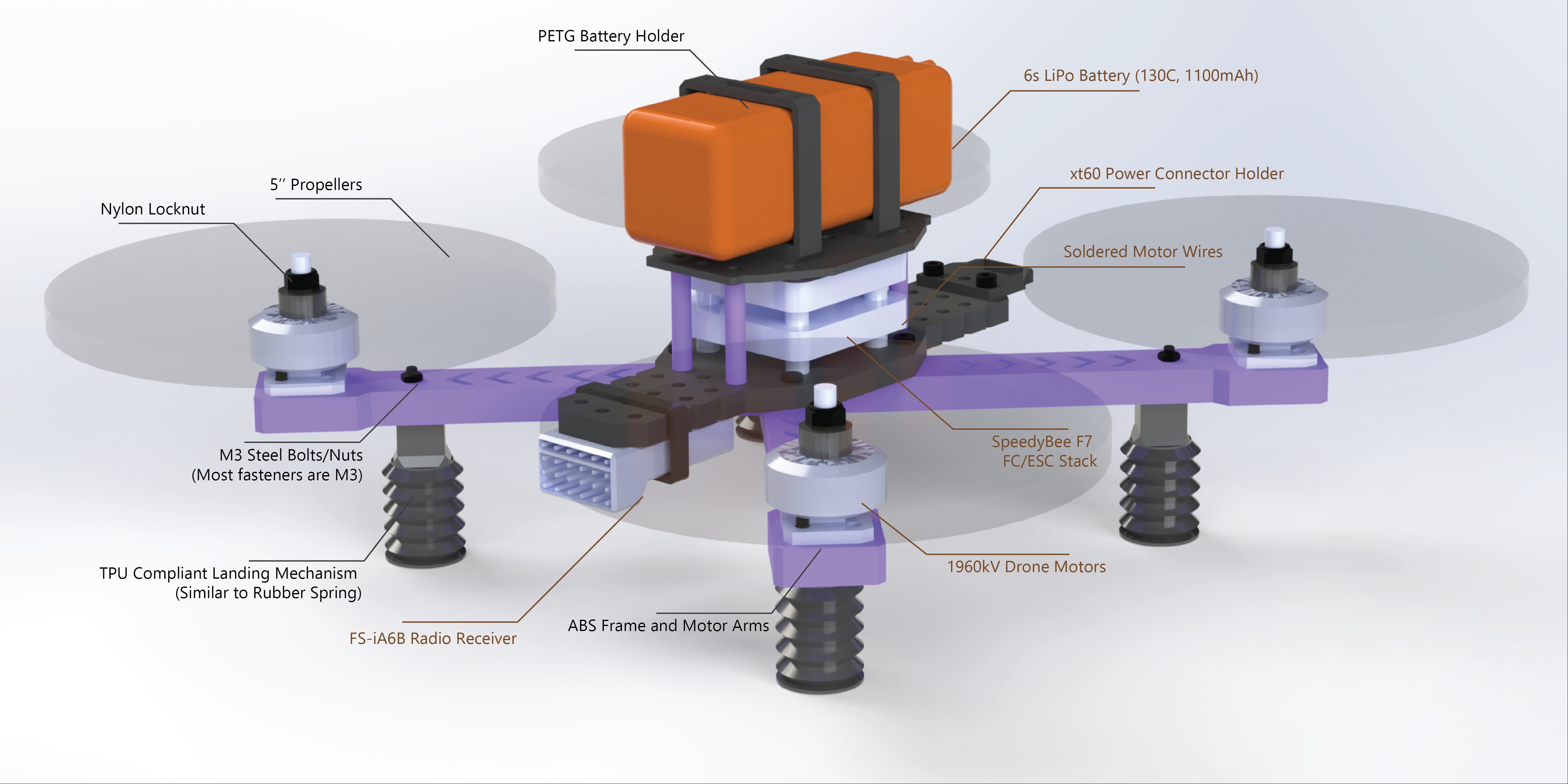

Brief labeled breakdown of front chassis major assembly, as well as materials of the main pieces of the drone.

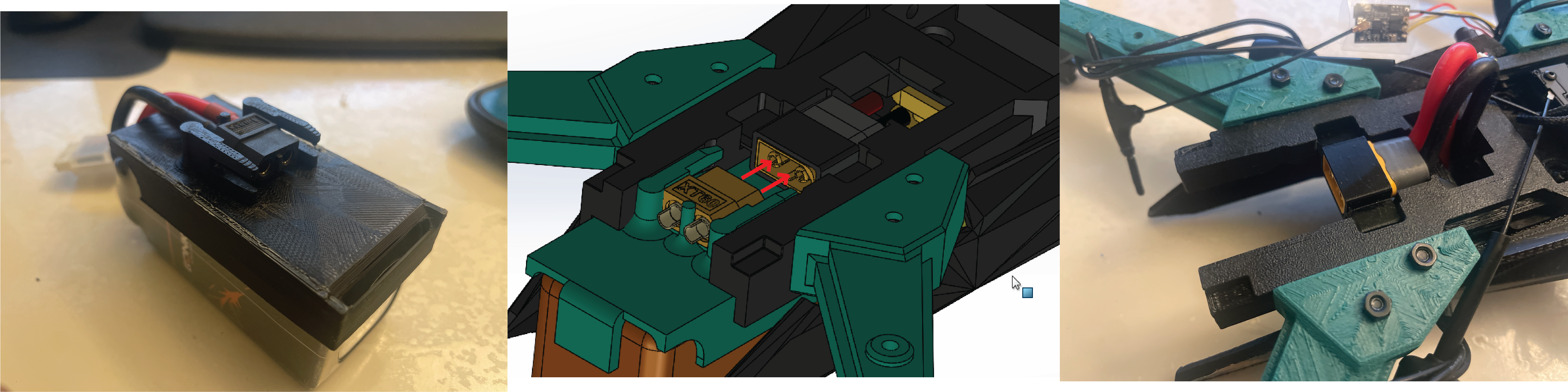

Quick disconnect system of the xt60 connector on the 6s LiPo battery. Previous designs

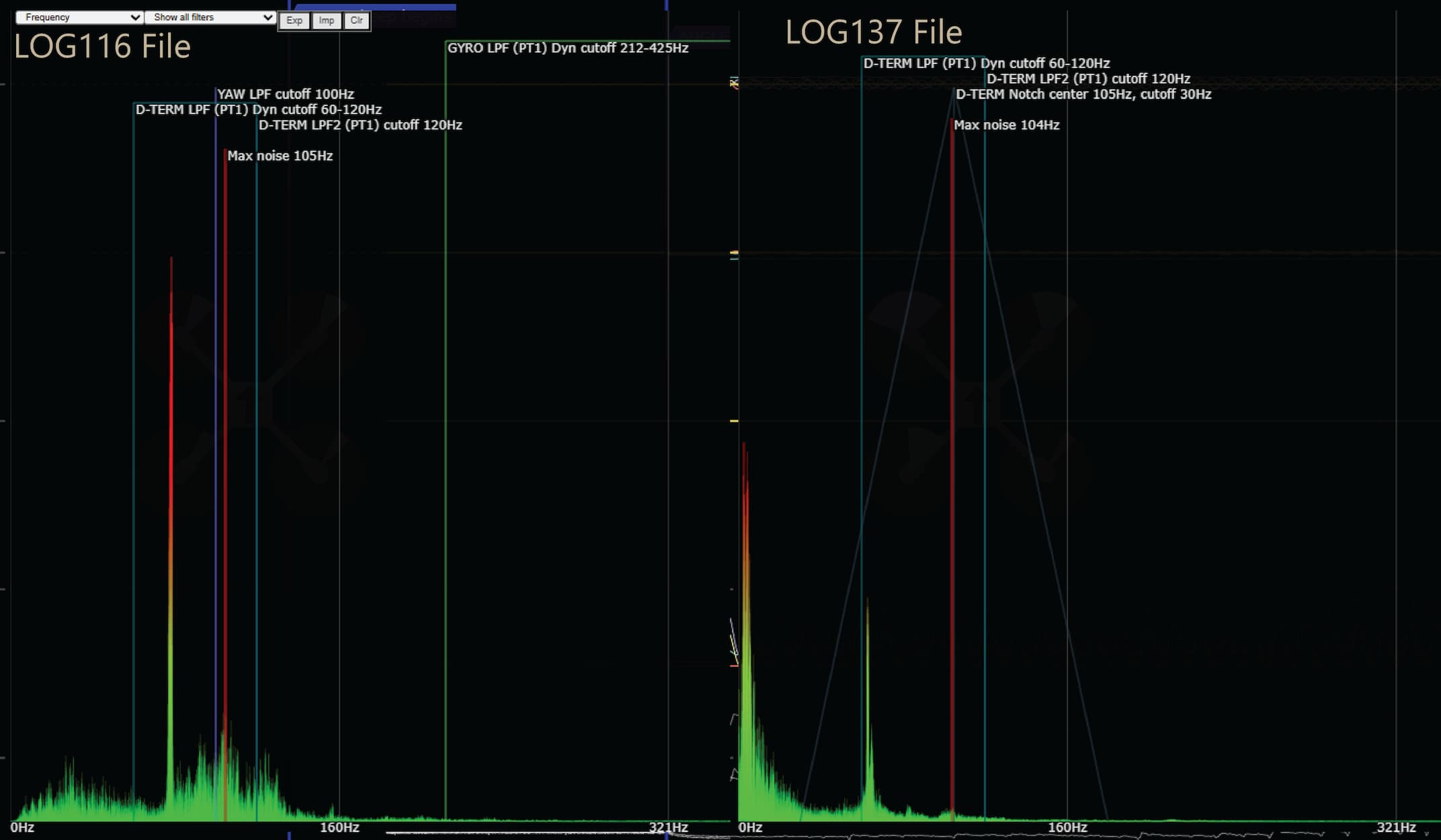

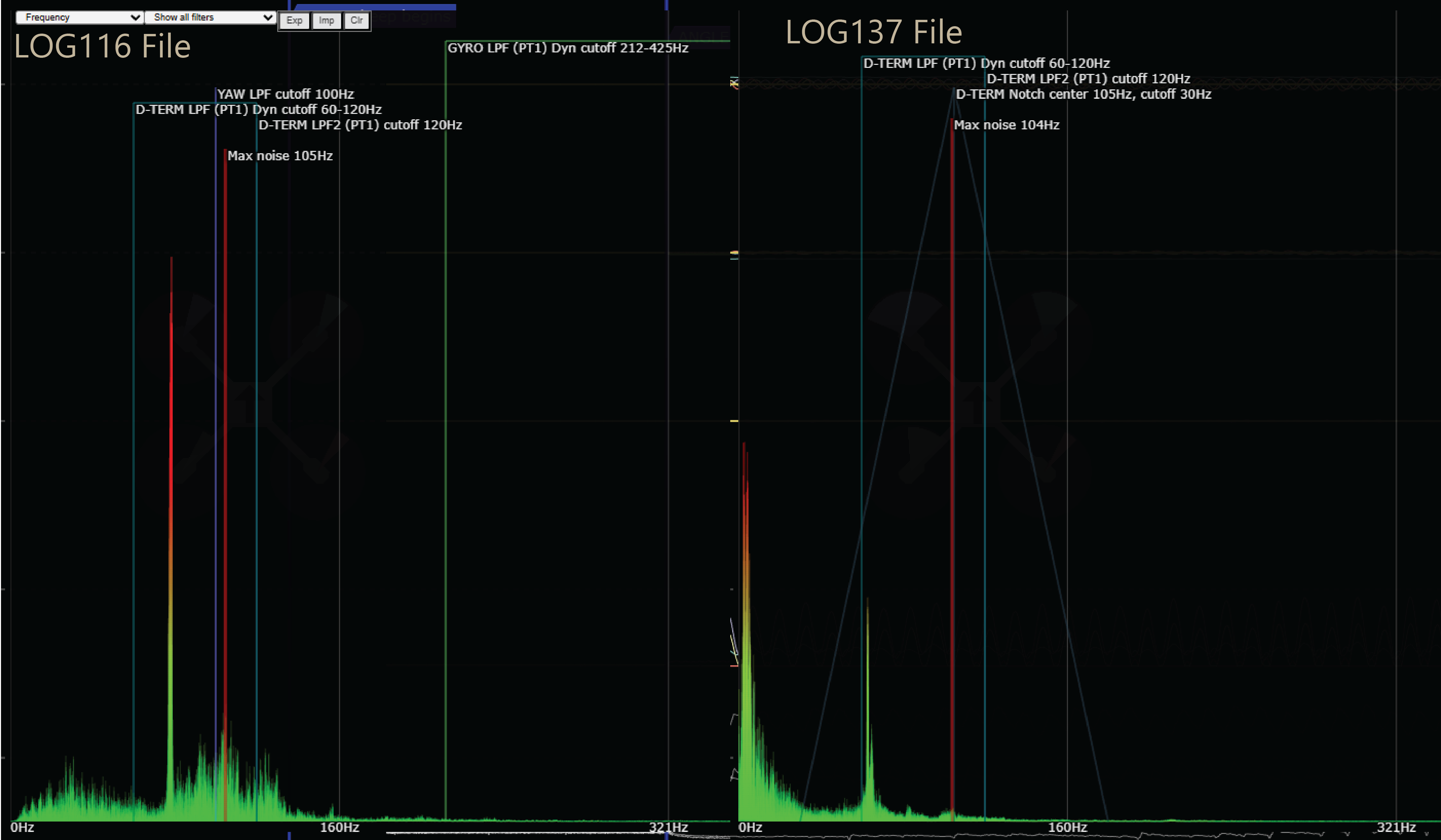

The frequency analyser map for before (left) and after (right) specific D low bypass and D-notch type frequency filters tuned specifically to remove noise from this design, both taken from blackbox info after flight tests. Note the ^ shaped D-TERM Notch in the right chart, specifically configured to rectify the Max Noise of 105Hz from the first blackbox feedback. The change was in tuning filters and a new compliant landing mechanisms; it was implemented and documented August 27th, 2025

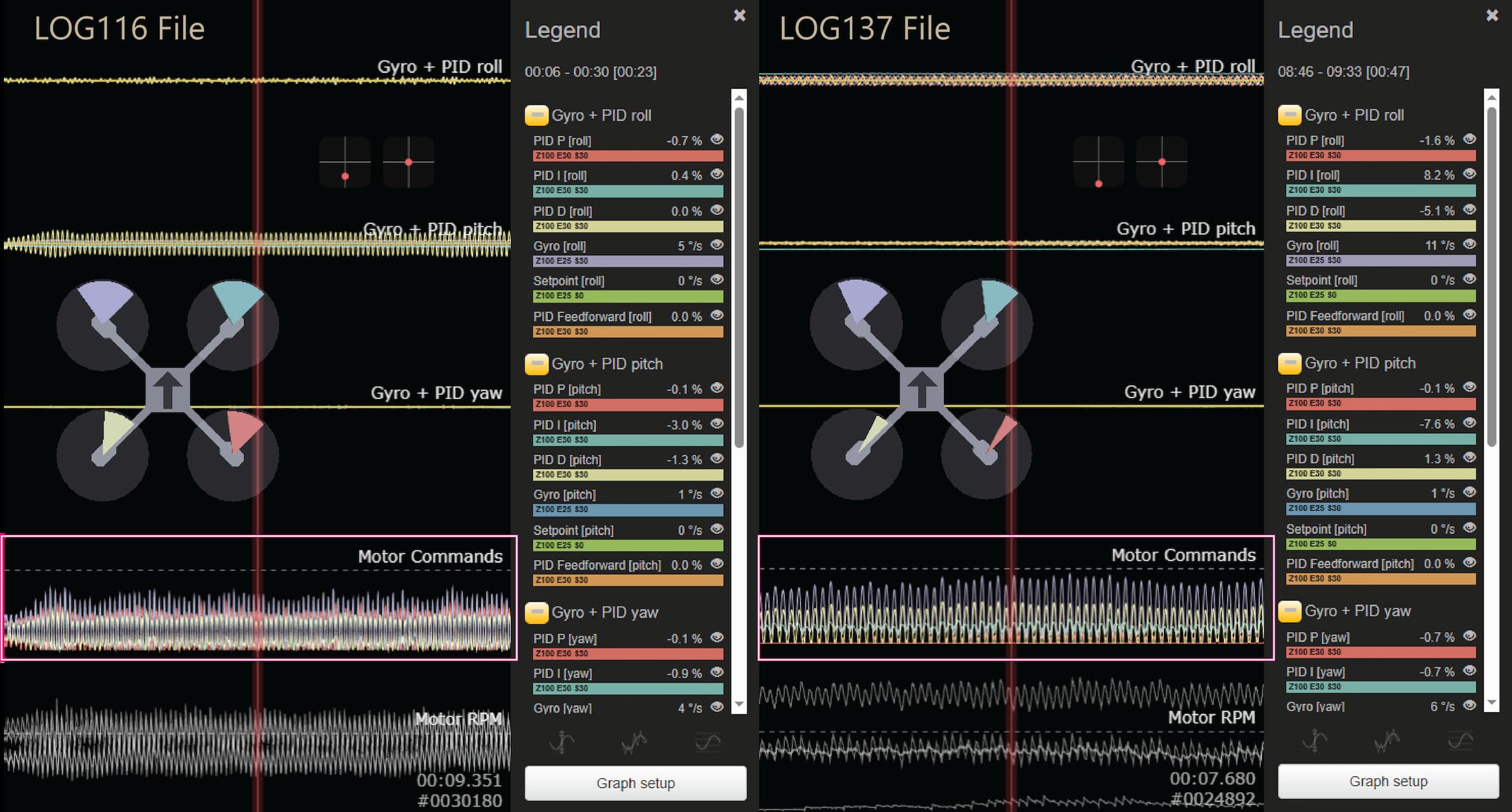

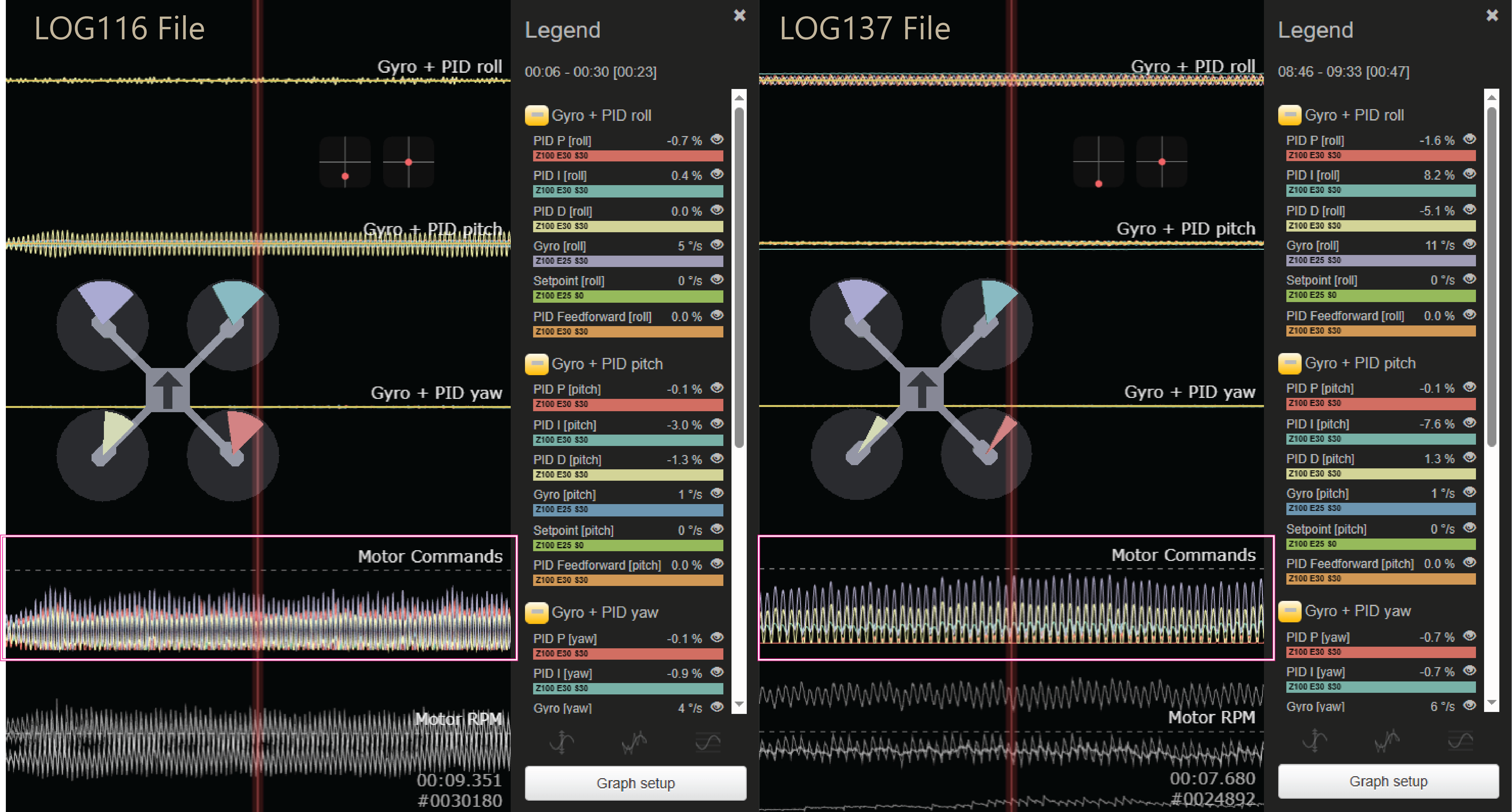

Some more visualization of the change from the previous slide, note that the motor commands after iteration were much more in sync, rather than the sort of crowding and interfering commands of before. Additionally, the gyroscope telemetry was much more stable (and realistic) in the improved design.

No flight test... yet ;)

Pervious iterations

No design is constructed perfectly from the very first iteration, even those designed by the ever-so-perfect myself. The two major previous prototypes are displayed below. Though these design choices and concerns are detailed in the engineering notebook, a brief, high-level overview is presented here.

Additionally, many individual components have gone over iterations as well as a result of significant faults that could be relieved without making major revisions to the current design.

Iterated entire project design multiple times by following the Design-Make-Test-Analyse (DMTA) framework by identifying key faults and achievements of each design
BoM construction of designs, and by weighing 3D printed parts and purchased electronics/hardware, to estimate mass for simple calculations
Document, Assembly and Component local file organization of Solidworks assemblies/parts files, Adobe Illustrator notebook, and .csv blackbox files for consistent and organized file management

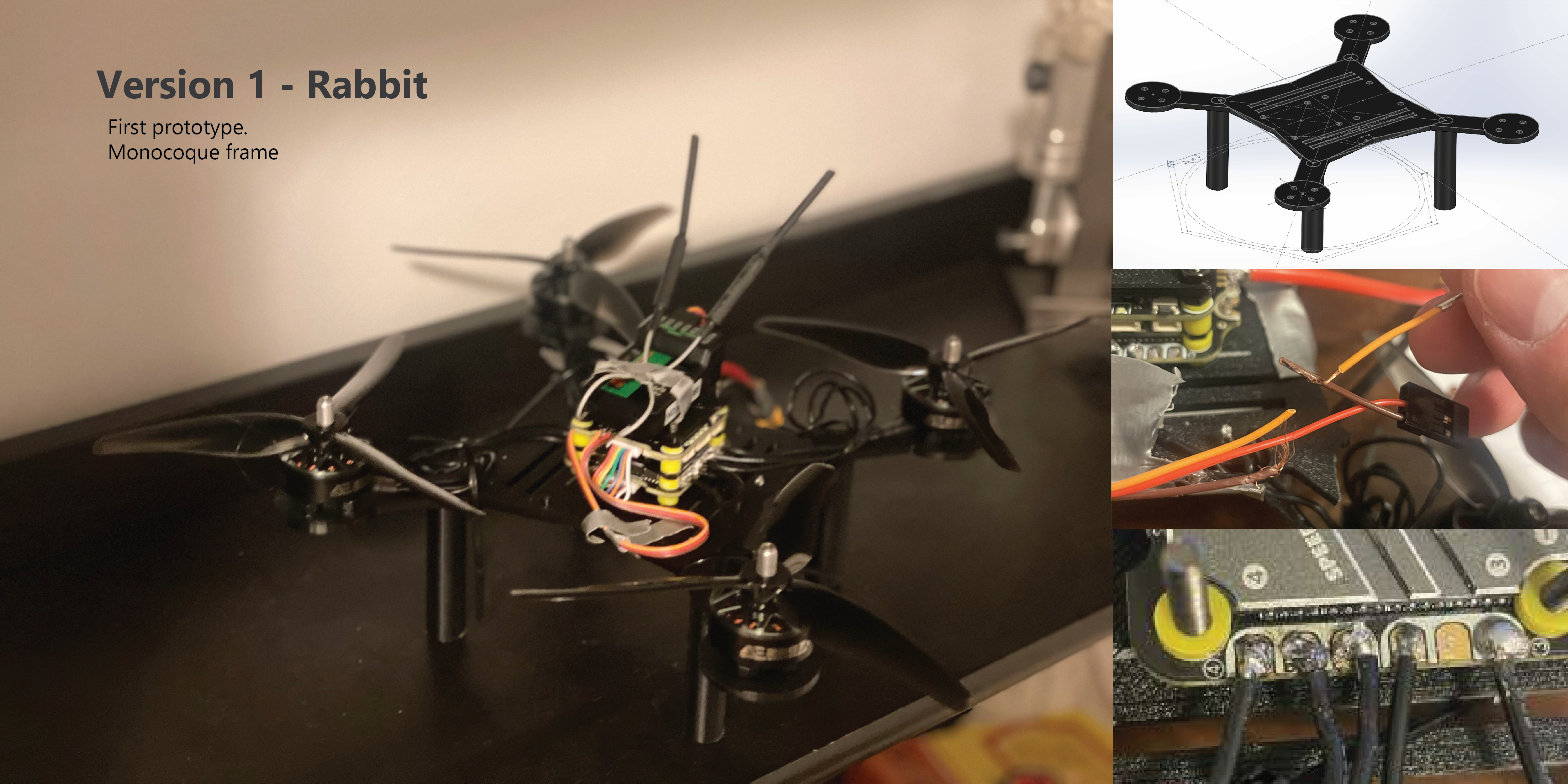

The first design was focused solely on getting something up in the air. The entire frame was print-in-plane and required no assembly at all. This design, though it was able to hover for a very limited time, encountered many issues, including strong frame vibrations, weak/inflexible landing gear, poor soldering, and eventually accidentally severing a radio signal wire with its propeller due to faulty wire management. Nicknamed Rabbit for its antennae looking like rabbit ears.

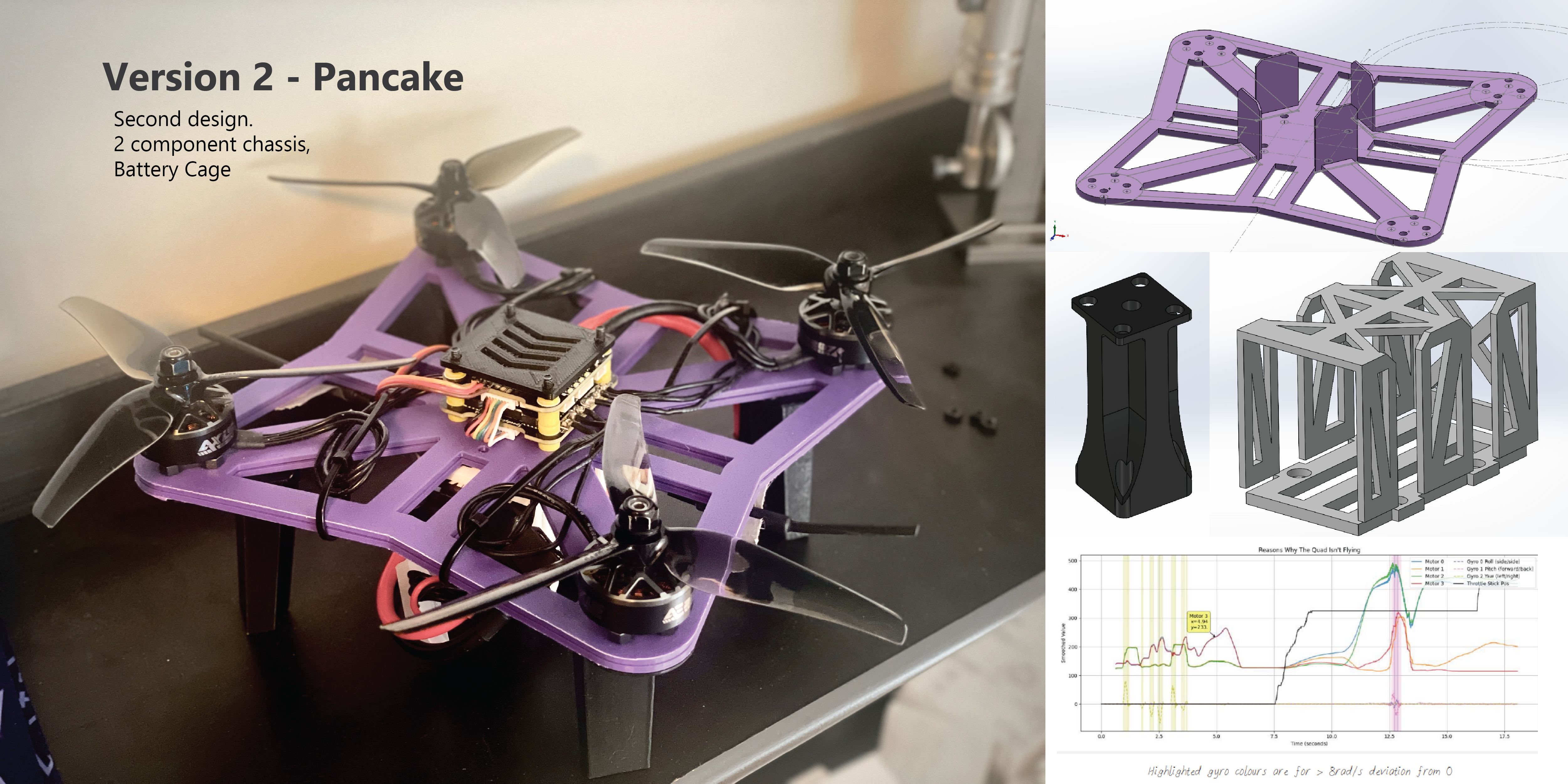

The second iteration aimed to be able to lift off more smoothly, while protecting its internals to not have any construction failures like the first did. This model still printed the large part of its frame, only have separate landing gear/feet to support. Additionally, the battery holder was improved from just tape to a solid PLA cage assembly, and Python MatplotLib was used to plot and analyze motor and telemetry functions. The frame initially held four walls for electronics protection, but eventually were found to be inefficient, and the bowing of the large frame was fixed by stacking an inverted frame beneath, earning its designation, Pancake.

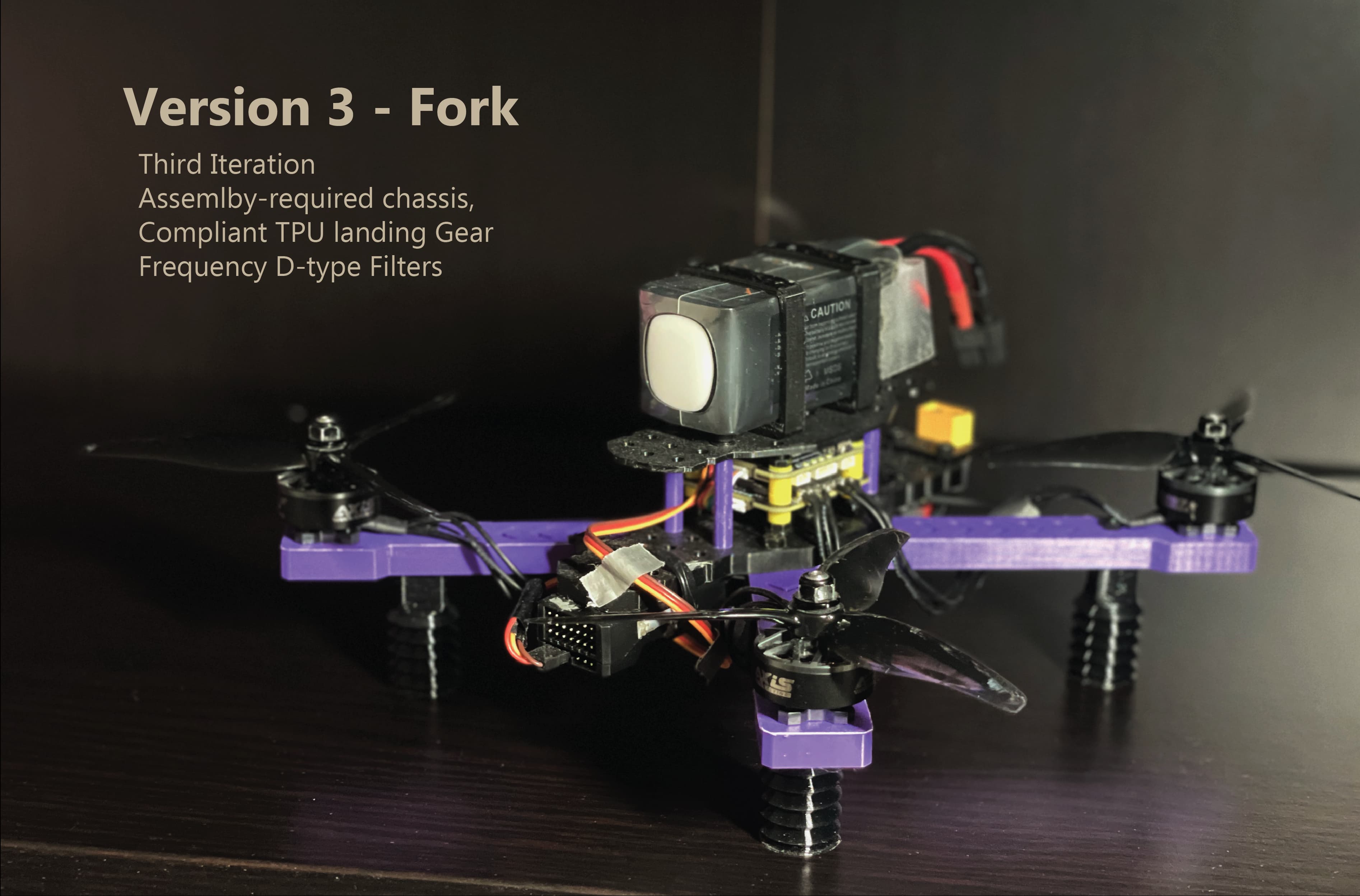

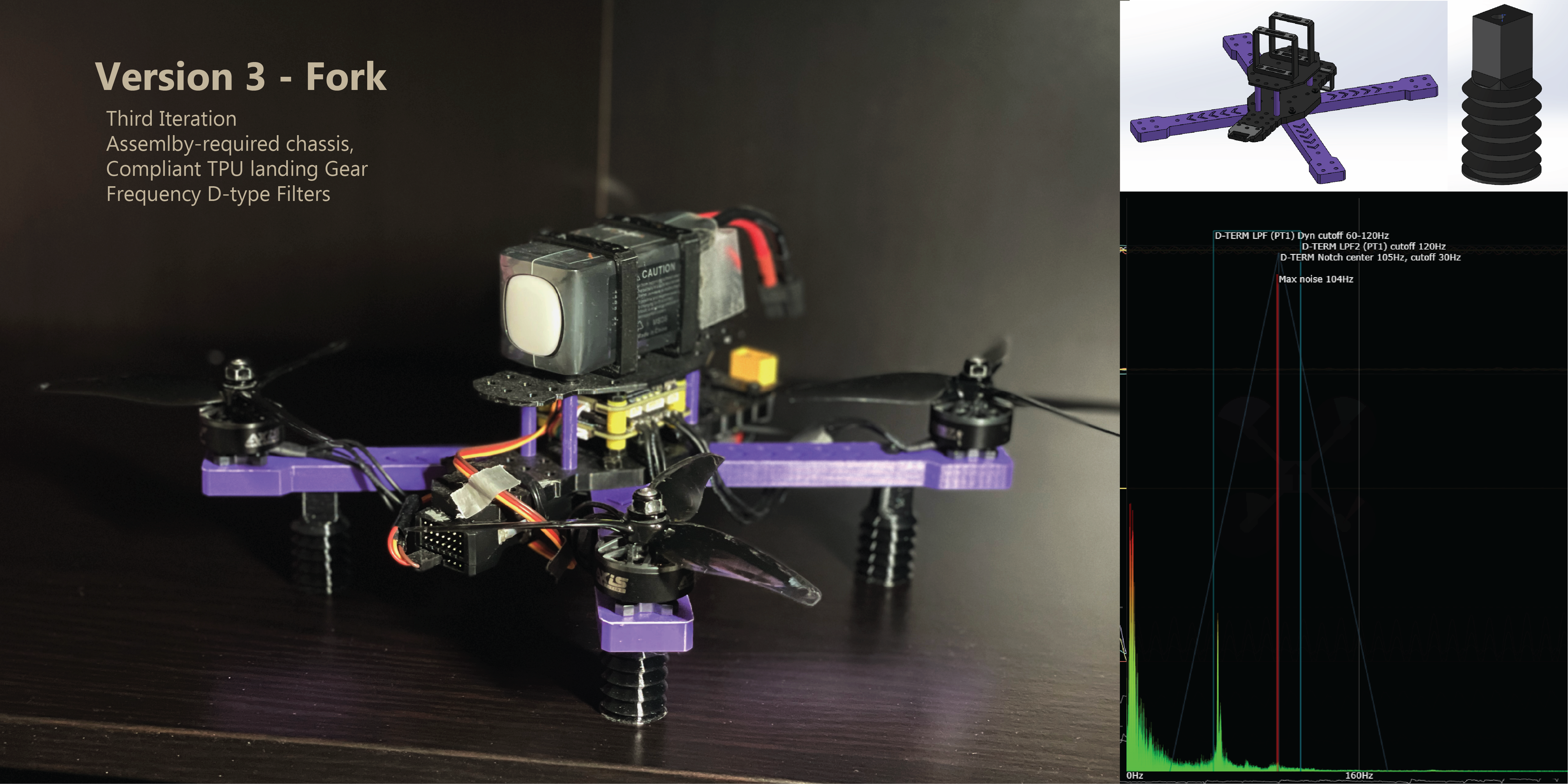

This iteration is more aimed towards optimizing landing and takeoff smoothness, as well as modularlity of the drone to allow for more flexible redesigning. Additionally, the implementation of signficant analysis tools such as the blackbox viewer and frequency analysis map, allowed for better problem identification. The usage of more materials, such as TPU, stainless steel fasteners, and eventually carbon fibre allowed for a more targeted design for each component. The design of the landing gear, inspired by motorcycle fork covers, led to the nickname Fork.

v4 came with generative design guided drone arms, allowing signficant mass down of the arms, while also increasing the stiffness of the arms with Bambu's PETG-CF filament. Additionally, the quadcopter has an inline configuration, having the battery being to the rear of the FC/ESC stack, rather than vertically located. This allowed for a neater packaging, but also shifted centre of mass rearwards significantly, increasing the load on the rear motors.

A flight test, for control and stability in flight, especially with the new inline configuration of v4 quadcopter.

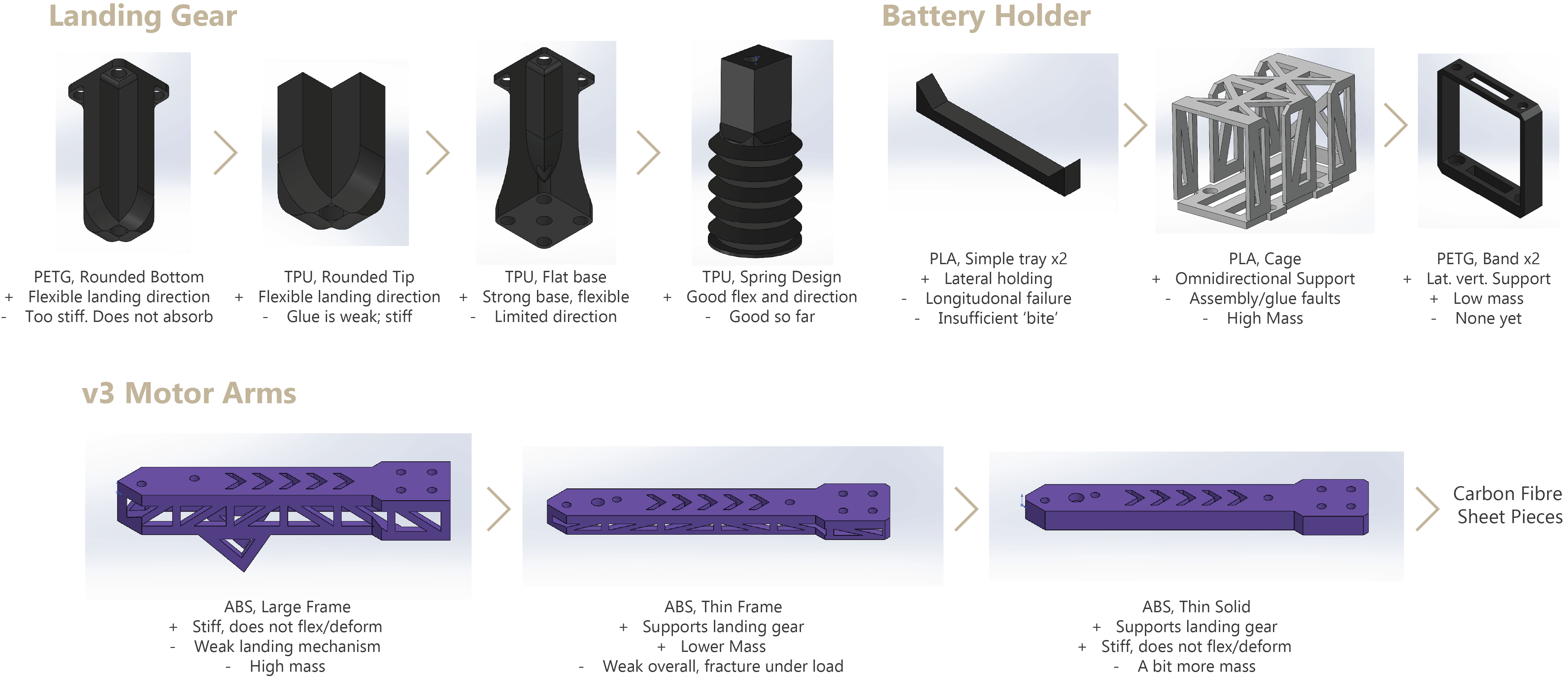

Some design iterations of individual components. Some components, such as the battery holders, were iterated along with the entire drone design, while other such as the landing gear and motor arms sometimes were iterated within the same overall design, highlighting the importance of the modularity introduced by v2 and improved on by v3.

Engineering Notebook

As with any somewhat long lasting project, documentation of design choices and any issues that arise is incredibly important. Troubleshooting has taken up the majority of my time throughout this project, and being able to track why decision were made and how to solve common issues is an integral part of staying efficiently progressing.

Though informal, the following document (accurate as of April 2025 due to exporting issues) is upkept daily with improvements to the quadcopter.

Logging issues and TODOs as they occur throughout all major days spent to track design issues and solutions
Tracking design iterations through tests (motors, radio receiver/transmitter, flight controller, gryoscope) uploaded on Youtube
